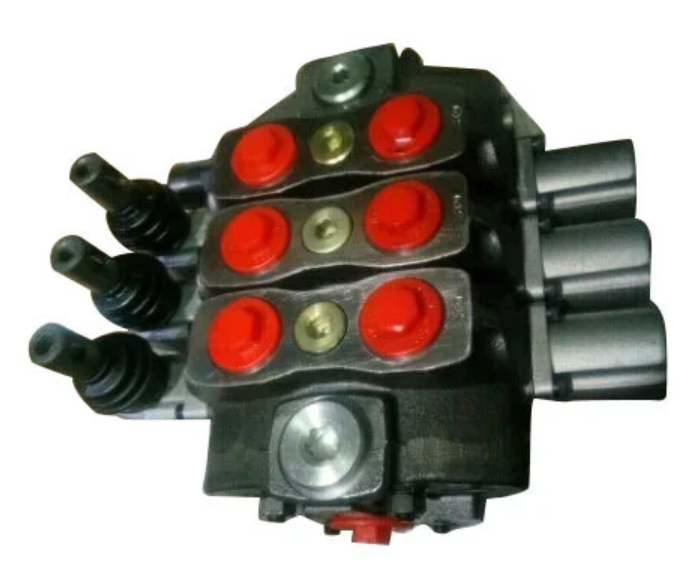

A sectional valve is a type of hydraulic control valve composed of multiple modular sections, allowing for independent control of multiple hydraulic functions within a system. It is widely used in mobile and industrial hydraulic applications, such as construction machinery, agricultural equipment, and material handling systems. Key Components of a Sectional Valve Main Valve Sections – Modular sections, each controlling a different hydraulic function. Inlet Section – Directs hydraulic fluid into the valve assembly from the pump. Spools – Move within the sections to regulate fluid flow and direction. Outlet Section – Returns excess hydraulic fluid to the reservoir. Pressure Relief Valve – Protects the system by preventing overpressure. Actuators (Manual, Electric, or Hydraulic) – Operate the spools to control fluid movement. Features of a Sectional Valve Modular Design – Can be expanded by adding or removing sections based on system needs. Independent Function Control – Each section operates a separate hydraulic circuit. Durable Construction – Made from high-strength materials for long-lasting performance. Customizable Flow and Pressure Settings – Adjustable to meet specific hydraulic requirements. Compact and Space-Saving – Ideal for systems with multiple hydraulic operations. Common Applications Construction Machinery – Used in excavators, loaders, and cranes for controlling multiple hydraulic movements. Agricultural Equipment – Powers hydraulic functions in tractors, harvesters, and sprayers. Material Handling – Operates hydraulic lifts, forklifts, and conveyor systems. Municipal Vehicles – Controls hydraulic functions in garbage trucks, fire trucks, and snow plows.
