Description
Product details

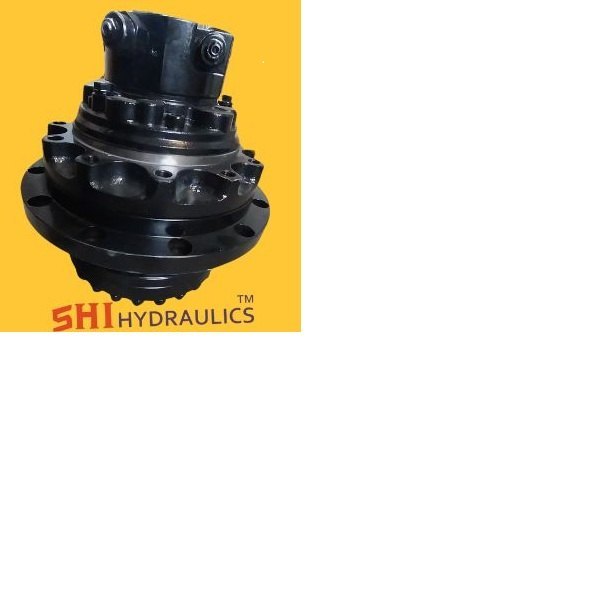

HDD Track Motor' likely refers to the track drive motor used in Horizontal Directional Drilling (HDD) machines. These motors are essential components for crawler-type HDD rigs that move on tracks like excavators or bulldozers. Here’s a breakdown of what it typically includes: �� HDD Track Motor – Overview �� Function: Powers the caterpillar tracks (undercarriage) of an HDD rig. Allows the rig to move across job sites, especially in rough terrain. Usually hydraulically driven, controlled via the machine's onboard system. ⚙️ Components: Hydraulic Motor: Converts hydraulic fluid pressure into mechanical torque. Usually a radial piston or orbital motor for high torque at low speed. Planetary Gearbox: Reduces speed and increases torque output. Designed for heavy-duty use in mobile machinery. Brake System: Often a built-in spring-applied, hydraulically released brake. Prevents movement when the machine is idle or off. Mounting Flange & Sprocket: Connects directly to the track sprocket, enabling motion transfer to tracks. ✅ Key Features: High torque output Compact design for integration into the track frame Sealed and weather-resistant for outdoor use Built for shock loads and heavy-duty cycles �� Applications: Horizontal Directional Drilling Rigs (Vermeer, Ditch Witch, etc.) Pipeline and trenchless installations Other crawler-based construction machinery �� Specifications (typical range): Spec Value Flow Rate 60–200 L/min Max Pressure 300–450 bar Torque 3000–15000 Nm Speed Range 0–50 RPM If you need: A part number cross-reference (for a brand like Vermeer or Ditch Witch) A spare parts diagram Hydraulic circuit showing the track motor's role Or help identifying one from a machine
