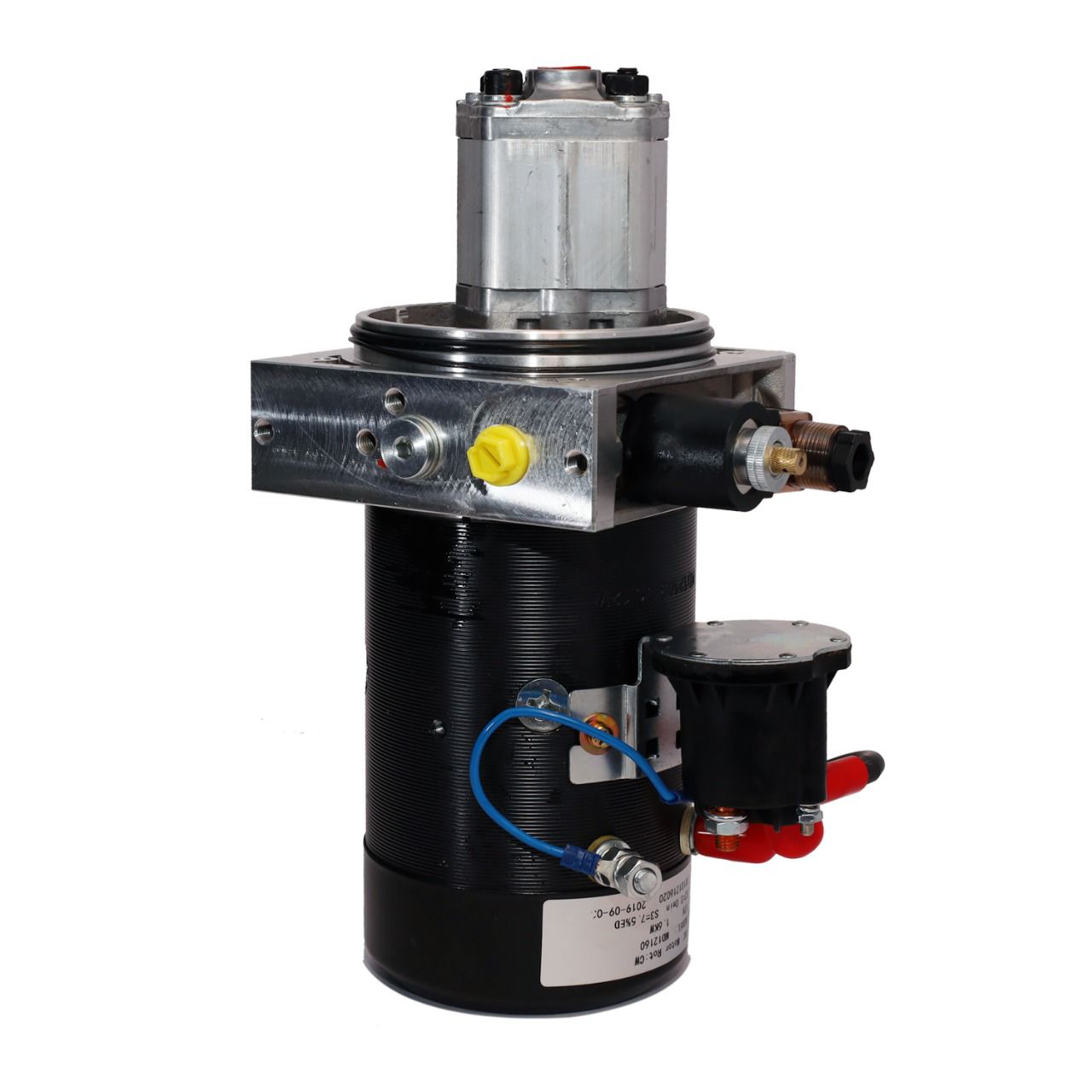

DC Power Pack is a compact, self-contained unit that supplies direct current (DC) power to hydraulic or electrical systems. It is commonly used in mobile and industrial applications where a reliable DC power source is required for actuating hydraulic cylinders, motors, and other equipment. Key Components of a DC Power Pack DC Electric Motor – Converts electrical energy into mechanical power to drive the hydraulic pump. Hydraulic Pump – Generates hydraulic pressure to power actuators and other hydraulic components. Reservoir/Tank – Stores hydraulic fluid for circulation within the system. Control Valves – Regulate the flow and direction of hydraulic fluid. Filters – Remove contaminants from the hydraulic fluid to maintain system efficiency. Battery or External Power Source – Provides DC electrical energy to operate the motor. Manifold Block – Houses various hydraulic control elements like relief valves and check valves. Features of a DC Power Pack Compact & Lightweight – Designed for easy installation in confined spaces. Efficient Power Output – Provides high torque with low energy consumption. Versatile Voltage Options – Available in 12V, 24V, 48V, and other DC voltage ratings. Remote Operation – Can be controlled via wired or wireless remote systems. Low Maintenance – Requires minimal upkeep compared to larger hydraulic systems. Common Applications Material Handling Equipment – Used in forklifts, scissor lifts, and hydraulic lifts. Automotive & Truck Applications – Powers hydraulic tailgates, dump trucks, and trailers. Industrial Automation – Supports presses, clamps, and compact hydraulic machinery. Agricultural Equipment – Operates hydraulic functions in tractors and sprayers. Marine & Off-Road Vehicles – Provides hydraulic power for winches, ramps, and steering systems.

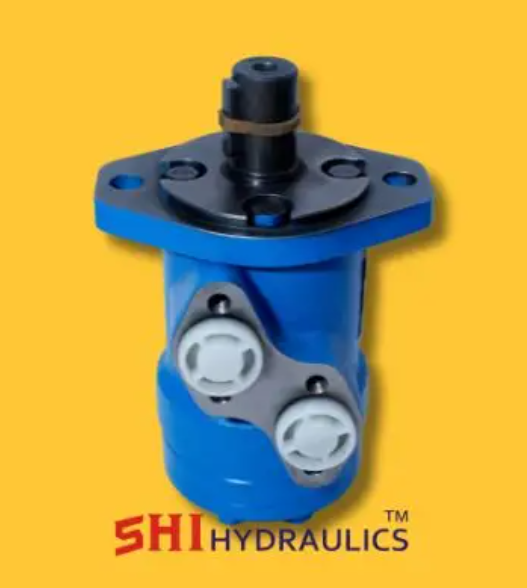

Hydraulics Motors Hydraulics Motors is a mechanical actuator that converts hydraulic energy (fluid power) into rotational mechanical energy. It is part of the broader category of hydraulic machinery used in a variety of industrial applications, from manufacturing to construction, where rotary motion is required. Hydraulic motors are powered by pressurized hydraulic fluid supplied by a pump, and they are capable of generating high torque at low speeds, making them essential for demanding tasks The hydraulic motors operates on the principle of fluid power, which involves the use of pressurized fluid to generate motion. A hydraulic consists of an enclosed rotor or shaft connected to gears, pistons, or other mechanical components, Pressurized Fluid Inflow: The hydraulic pump sends pressurized fluid to the hydraulic through an inlet port. Rotational Motion: As the fluid enters the it pushes against the internal components (such as gears or pistons), causing the rotor or shaft to rotate. Exhaust Flow: Once the fluid has passed through the , it exits via an outlet port, typically at a lower pressure than it entered. The rotational speed and torque output of the are determined by the pressure of the fluid and the design of the motor itself. Hydraulic motors can produce high Types There are several types of hydraulic motors, each designed for specific applications and performance requirements. These include: Gear: External Gear These consist of two meshed gears that rotate to generate torque. The fluid is directed between the gears, causing them to spin. Internal Gear : These have a smaller gear rotating inside a larger gear. They are more efficient than external gear motors and are capable of producing higher torque output. Vane These use sliding vanes mounted on a rotor to create pressure chambers as the spins. The vanes push against the walls of the housing, generating rotational motion. V Piston : Axial Piston : In these motors, pistons are arranged parallel to the shaft and move back and forth. The fluid forces the pistons to generate motion along the shaft. Radial Piston Here, the pistons are arranged radially around the motor shaft. These motors are known for their ability to generate high torque at lower speeds, Rotary Vane These motors consist of a rotor and vanes that slide in and out to create pressurized chambers. The chambers drive the motor’s Applications Construction Machinery: Hydraulic motors are integral to the operation of equipment like excavators, cranes, bulldozers, and wheel loaders, Agriculture: These motors drive implements such as augers, Marine and Offshore: Hydraulic motors are used to power winches, thrusters, and other machinery in marine vessels and offshore oil rigs. Industrial Automation: Automotive: In automotive applications, hydraulic motors are used in systems such as steering, lifting equipment, or as part High Torque at Low Speeds: Efficiency: Compact Design: Durability and Reliability: T Precise Control: Leakage and Fluid Loss: Noise and Heat Generation: Maintenance: Sensitivity to Contaminants: Vane motors use a rotor with sliding vanes that are forced outward by centrifugal force as the rotor turns. The vanes create pressurized chambers, which generate rotational motion. Vane motors are known for smooth operation and high efficiency, particularly at low speeds, and are often used in applications where quiet and steady performance is required. Axial Piston Motors: These motors have pistons arranged parallel to the motor shaft. As hydraulic fluid forces the pistons to move back and forth, it causes the motor shaft to rotate.

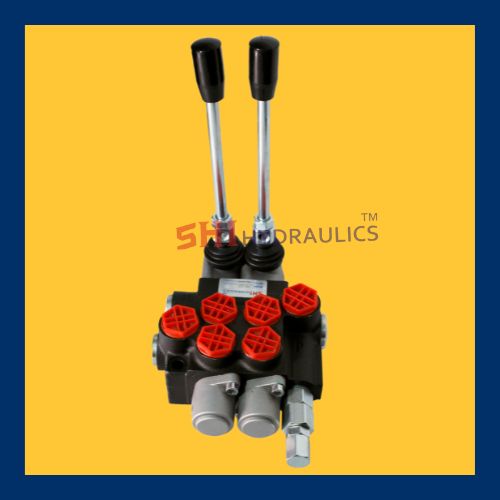

A control valve is a mechanical device used to regulate the flow, pressure, temperature, or level of a fluid (liquid, gas, or steam) within a system. It operates by varying the size of the flow passage in response to a control signal, ensuring precise process control in industries such as oil & gas, power generation, water treatment, and manufacturing. Key Components of a Control Valve Valve Body – The main casing that houses the internal components and provides a passage for fluid flow. Actuator – The mechanism (pneumatic, electric, or hydraulic) that moves the valve to adjust flow. Valve Plug or Disc – The movable part that regulates the flow by opening, closing, or throttling the passage. Stem – Connects the actuator to the valve plug for movement control. Positioner (Optional) – Ensures precise control by adjusting the actuator’s position based on control signals. Types of Control Valves Globe Valve – Provides accurate flow control with a linear motion plug. Ball Valve – Uses a rotating ball with a hole to control fluid flow, offering quick shut-off. Butterfly Valve – Features a rotating disc for efficient flow regulation in large pipes. Diaphragm Valve – Utilizes a flexible diaphragm to control flow, ideal for corrosive fluids. Needle Valve – Designed for fine flow adjustments in small-diameter pipelines. Pressure Relief Valve – Prevents overpressure by releasing excess fluid when necessary. Common Applications Industrial Process Control – Regulates flow and pressure in chemical, power, and manufacturing plants. Water Treatment – Controls water distribution and filtration processes. Oil & Gas Industry – Used in pipelines, refineries, and offshore drilling operations. HVAC Systems – Manages heating, cooling, and ventilation flow rates. Pharmaceutical & Food Processing – Ensures precise flow control for hygiene and efficiency.

Stainless Steel Bellows — Product Description Product Name: Stainless Steel Bellows / Flexible Expansion Joint Material: High-grade Stainless Steel (SS304 / SS316) Excellent corrosion resistance, high temperature performance Design & Construction: Precision-formed corrugated bellows for maximum flexibility Seamlessly welded ends for structural integrity Can be single- or multi-plied depending on application Optional end fittings/flanges for easy installation Function: Stainless Steel Bellows are designed to: ✔ Absorb thermal expansion and contraction ✔ Compensate for misalignment and vibration ✔ Reduce stress in piping systems ✔ Enhance durability under pulsation and pressure variations Applications: Automotive EGR systems, exhaust piping HVAC systems & ducting Industrial piping & pressure lines Turbocharger connections Chemical, petrochemical, power plants Key Benefits: ✨ High flexibility under thermal cycling ✨ Corrosion & oxidation resistance ✨ Long service life ✨ Handles high temperature & pressure environments ✨ Reduces noise and mechanical stress Specifications (Typical): Material Grade: SS304 / SS316 Thickness: 0.5–1.5 mm (varies with design) Diameter: Custom sizes available Temperature Range: –50°C to 800°C+ Pressure Range: Up to 20 bar+ depending on series Installation: Fit between mating flanges with gaskets Torque evenly to ensure leak-free sealing Avoid twisting during assembly 📝 Why Choose Stainless Steel Bellows? Stainless Steel Bellows combine robust construction with exceptional flexibility — making them ideal for systems where thermal movement, vibration, and mechanical stress are continuous challenges. Their durability extends equipment life and minimizes maintenance downtime.

xhaust Bellows at Sonu Hose Pipe – Flexible Solutions for High-Temperature Exhaust Systems At Sonu Hose Pipe, we specialize in supplying high-quality Exhaust Bellows engineered to absorb thermal expansion, vibration, and misalignment in exhaust and ducting systems. Designed for demanding industrial and automotive environments, our exhaust bellows ensure reliable performance, extended system life, and enhanced safety under extreme operating conditions. With a strong commitment to quality, precision manufacturing, and customer satisfaction, Sonu Hose Pipe provides exhaust bellows that meet the requirements of modern engines, power plants, generators, and industrial exhaust applications. What Are Exhaust Bellows? Exhaust bellows are flexible expansion joints installed in exhaust systems to compensate for movement caused by heat expansion, vibration, and mechanical stress. As exhaust gases flow at high temperatures, system components expand and contract. Exhaust bellows protect rigid pipes and connected equipment by absorbing this movement, preventing cracks, leaks, and premature failure. They play a vital role in maintaining exhaust system integrity and reducing noise and vibration. Types of Exhaust Bellows Available at Sonu Hose Pipe We offer a wide range of exhaust bellows to suit various industrial and commercial applications: Metallic Exhaust Bellows Made from high-grade stainless steel Resistant to extreme temperatures and corrosion Ideal for heavy-duty and high-pressure applications Non-Metallic Exhaust Bellows Constructed using reinforced fabric or composite materials Suitable for lower pressure and temperature ranges Excellent vibration and noise absorption Single & Multi-Ply Bellows Single-ply for standard applications Multi-ply for enhanced strength and fatigue resistance Customized Exhaust Bellows Tailor-made designs based on size, temperature, and pressure requirements Flanged or welded end connections available Key Features of Exhaust Bellows from Sonu Hose Pipe High Temperature Resistance – Designed to withstand extreme exhaust heat Vibration Absorption – Protects engines and pipelines from mechanical stress Thermal Expansion Compensation – Prevents damage due to temperature variations Leak-Proof Construction – Ensures safe exhaust gas flow Corrosion Resistance – Suitable for harsh operating environments Long Service Life – Built for durability and consistent performance Applications of Exhaust Bellows Exhaust bellows supplied by Sonu Hose Pipe are widely used in: Diesel generator exhaust systems Automotive and commercial vehicle exhausts Power plants and turbines Marine engines Industrial boilers and furnaces Compressors and blowers HVAC and ducting systems Their flexibility and strength make them essential components in systems exposed to continuous thermal cycling. Quality Assurance at Sonu Hose Pipe Quality is at the core of everything we do at Sonu Hose Pipe. Our exhaust bellows undergo rigorous inspection and testing to ensure: Dimensional accuracy Temperature and pressure endurance Proper flexibility and movement absorption Secure welding and joint integrity Compliance with industry standards This ensures our customers receive products that perform reliably even under severe operating conditions. Advantages of Choosing Sonu Hose Pipe Wide Range of Exhaust Bellows – Standard and customized solutions Technical Support – Expert guidance for proper selection and installation Consistent Quality – Trusted performance across applications Competitive Pricing – High value with cost-effective solutions Customer-Focused Service – Long-term support and reliability Installation & Maintenance Benefits Exhaust bellows from Sonu Hose Pipe are designed for easy installation and minimal maintenance. When installed correctly, they: Reduce stress on exhaust pipelines Minimize noise and vibration Prevent system damage Improve overall efficiency Routine inspections help ensure optimal performance and extended service life. Why Exhaust Bellows Are Essential in Exhaust Systems Without proper expansion joints, exhaust systems are prone to cracking, leakage, and costly repairs. Exhaust bellows play a crucial role by: Protecting connected equipment Enhancing system reliability Improving safety and operational stability Sonu Hose Pipe ensures these benefits through robust design and dependable materials. Contact Sonu Hose Pipe for Exhaust Bellows Solutions If you are looking for durable, high-performance Exhaust Bellows, Sonu Hose Pipe is your trusted source. Our team is ready to provide reliable products and expert support tailored to your specific exhaust system requirements. Sonu Hose Pipe – Delivering Flexible, Heat-Resistant Solutions for Modern Exhaust Systems.

HDD Control Valves Control valves** in HDD rigs manage the direction, flow rate, and pressure of hydraulic fluids powering various components, such as: Thrust/pullback systems Drill rotation motors Clamp/vise actuators Pipe loader arms Mud pump drive systems They can be manual, pilot-operated, or electro-hydraulic depending on system complexity. �� 2. Types of Valves Used in HDD Systems Valve Type Function Common Placement Directional Control Valve (DCV) Directs flow to actuators (e.g. extend/retract cylinders) Main hydraulic circuits Flow Control Valve Regulates speed of actuators by limiting flow Rotation/thrust speed adjustment Pressure Relief Valve Protects system from overpressure Inline with all major circuits Pilot-Operated Check Valve Locks actuators in place under load Clamp and rotation holding systems Solenoid Valve Electrically controlled valve for automated function Remote or onboard controls Load-Sensing Valve Adjusts flow based on demand, improving efficiency Advanced HDD rigs ⚙️ 3. Features: High pressure handling (up to 5000 psi / 350 bar) Compact modular manifolds for integrated control Stackable for space-efficient designs Available in cartridge or monoblock forms Options for manual levers, electric joystick, or remote radio control �� 4. Specifications (Typical): Spec Value Flow Rate 20–150 L/min Pressure 210–420 bar (3000–6000 psi) Ports BSP, NPT, or SAE Control Manual, electric, or hydraulic pilot Material Steel or cast iron (plated for corrosion resistance) �� 5. Brands Used in HDD Machines: Rexroth (Bosch) Parker Hannifin Hydac Sun Hydraulics Danfoss / Eaton Walvoil, Yuken, and Atos �� 6. Applications in HDD Rigs: System Valve Role Thrust/Pullback Directional & flow control for hydraulic cylinders Rotation Drive Speed & torque control via flow/pressure regulation Clamp/Vise Check valves to hold position under load Rod Loader Directional valves for actuator motion Drill Head Steering Fine pressure and flow adjustments for steering nozzles �� 7. Maintenance & Troubleshooting: Regularly inspect for leakage, spool stickiness, or overheating Ensure filters are clean to avoid contamination wear Check for correct voltage on solenoid coils Use diagnostic tools to monitor pilot pressure and feedback

HDD Track Motor' likely refers to the track drive motor used in Horizontal Directional Drilling (HDD) machines. These motors are essential components for crawler-type HDD rigs that move on tracks like excavators or bulldozers. Here’s a breakdown of what it typically includes: �� HDD Track Motor – Overview �� Function: Powers the caterpillar tracks (undercarriage) of an HDD rig. Allows the rig to move across job sites, especially in rough terrain. Usually hydraulically driven, controlled via the machine's onboard system. ⚙️ Components: Hydraulic Motor: Converts hydraulic fluid pressure into mechanical torque. Usually a radial piston or orbital motor for high torque at low speed. Planetary Gearbox: Reduces speed and increases torque output. Designed for heavy-duty use in mobile machinery. Brake System: Often a built-in spring-applied, hydraulically released brake. Prevents movement when the machine is idle or off. Mounting Flange & Sprocket: Connects directly to the track sprocket, enabling motion transfer to tracks. ✅ Key Features: High torque output Compact design for integration into the track frame Sealed and weather-resistant for outdoor use Built for shock loads and heavy-duty cycles �� Applications: Horizontal Directional Drilling Rigs (Vermeer, Ditch Witch, etc.) Pipeline and trenchless installations Other crawler-based construction machinery �� Specifications (typical range): Spec Value Flow Rate 60–200 L/min Max Pressure 300–450 bar Torque 3000–15000 Nm Speed Range 0–50 RPM If you need: A part number cross-reference (for a brand like Vermeer or Ditch Witch) A spare parts diagram Hydraulic circuit showing the track motor's role Or help identifying one from a machine

Horizontal Directional Drilling (HDD) Mud Motors, essential tools for drilling through hard rock formations: ZH HDD Tooling Mud Motor: Designed for HDD applications, this mud motor efficiently converts hydraulic energy into mechanical rotation, enabling effective drilling in solid rock formations. ​ StraightLine® HDD Mud Motor: This mud motor features a robust bearing section and is engineered for high torque and slow-speed operation, enhancing bit life and drilling efficiency. ​ XCMG 5LZ165x7.0 Mud Motor: Specifically designed for XCMG HDD rigs, this mud motor is suitable for complex formations and hard rock drilling. It includes a cavity probe and teeth drill bits, making it versatile for various drilling conditions. ​ Galip Equipment Mud Motor: Built to handle challenging drilling environments, this mud motor is designed to combat sediment and sand risks during HDD operations.

HDD Thrust Motor HDD Thrust Motor a standard or widely recognized component in the architecture of hard disk drives. However, you may be referring to or mixing up terms that are related to actuator movement or spindle mechanics.
