Flow Control Valve at Sonu Hose Pipe Overview: Sonu Hose Pipe offers a wide range of high-quality Flow Control Valves designed to regulate the flow of hydraulic or pneumatic fluids within your system. These valves are essential in ensuring that fluid flows at a precise rate, optimizing performance and maintaining safe operational levels in hydraulic circuits. Whether you’re working in construction, manufacturing, agriculture, or automotive industries, Sonu’s flow control valves are built to provide accuracy and efficiency in fluid management. Valve Size 3/8 Inch Material Stainless Steel End Connection Type Flanged Automation Grade Manual Media Air A flow control valve is a type of valve used in hydraulic and pneumatic systems to regulate the flow rate of fluid (either liquid or gas) through the system. By controlling the flow rate, these valves help maintain the desired speed of actuators, such as hydraulic cylinders or motors, ensuring proper operation of the system. Flow control valves are essential for maintaining stability, accuracy, and efficiency in various industrial applications. Key Features: Precise Flow Regulation: Sonu flow control valves are engineered to deliver accurate and consistent control over fluid flow, ensuring the optimal operation of your hydraulic or pneumatic systems. Durable Construction: Made from high-strength materials such as steel, stainless steel, and aluminum, these valves are designed to endure demanding environments, providing long-lasting durability and performance. Wide Range of Flow Control Options: Available in various configurations including manual, adjustable,, allowing you to choose the perfect solution based on your specific application requirements. High Pressure and Temperature Resistance: Sonu flow control valves are built to handle high pressure and temperature conditions, ensuring reliable operation in even the harshest industrial environments. Leak-Free and Secure Operation: Our valves are designed with precision seals and high-quality materials to prevent leaks and ensure the consistent, leak-free flow of fluids. Compact and Space-Saving Design: Designed with a compact footprint, Sonu flow control valves fit seamlessly into tight spaces, helping streamline your system and saving valuable space. Types of Flow Control Valves: Manual Flow Control Valves: These valves allow operators to adjust the flow rate manually, providing flexibility and ease of use for systems requiring operator-controlled flow adjustments. Adjustable Flow Control Valves: These valves feature adjustable knobs or screws to fine-tune the flow rate, giving users the ability to precisely control fluid movement according to specific system needs. Pressure Compensated Flow Control Valves: These advanced valves automatically adjust the flow rate to maintain consistent operation, even under varying pressure conditions, ensuring steady flow in high-demand applications. Non-Return Flow Control Valves: Used to prevent fluid from flowing back into the system, these valves ensure that fluid moves in only one direction, enhancing system efficiency and preventing reverse flow. Bypass Flow Control Valves: These valves regulate the flow by redirecting fluid to a bypass when the system exceeds a certain pressure, helping to protect sensitive components from damage. Applications: Hydraulic Systems: In hydraulic systems such as construction machinery, forklifts, and presses, flow control valves regulate the speed and movement of actuators, cylinders, and motors. Pneumatic Systems: Flow control valves are used in pneumatic systems in industries such as packaging, automation, and material handling to regulate air flow and ensure proper functioning of pneumatic tools and devices. Industrial Machinery: Flow control valves play a crucial role in controlling fluid flow in machinery used for metalworking, assembly lines, and automated processes, ensuring smooth operations. Automotive and Transport Systems: In vehicles and transport systems, these valves regulate hydraulic systems for steering, brakes, and suspension to ensure safe and reliable performance. Why Choose Sonu Hose Pipe Flow Control Valves? Precision Control: Sonu’s flow control valves provide accurate, adjustable flow regulation to meet the precise needs of your system, improving overall efficiency and performance. Reliability and Durability: Built with high-quality materials, these valves are designed to withstand extreme operating conditions, ensuring long-lasting and reliable operation. Versatility: With a wide range of models and customizable options, our flow control valves are ideal for a variety of applications, from small machines to large-scale industrial systems. Enhanced System Performance: By accurately regulating flow rates, these valves help improve the performance of hydraulic and pneumatic systems, enhancing their efficiency and longevity.

Direction Control Valve Direction Control Valve at Sonu Hose Pipe Overview: Sonu Hose Pipe offers a wide range of high-performance Direction Control Valves designed to provide precise control over the direction of fluid flow within hydraulic and pneumatic systems. These valves play a vital role in various applications, ensuring fluid is routed to the correct components, enhancing operational efficiency and safety. With durable construction and advanced features, our direction control valves are ideal for a variety of industrial, agricultural, and automotive systems. K2DE06 This is a 2 way, 2 position, solenoid operated, direct acting, poppet directional valve. The valve provides a leak-free closure when de-energized, and allows flow in either direction when energized. Due to poppet style construction the valve has extremely low leakage in closed condition. Key Features: Precise Flow Direction Control: Our direction control valves are engineered to offer accurate control of fluid flow, allowing you to direct hydraulic or pneumatic fluids to specific areas of your system with ease and precision. Multiple Configurations: Available in a wide range of sizes, mounting options, and configurations, Sonu direction control valves can be customized to suit your unique operational needs and system requirements. Durable and Reliable: Constructed from high-quality materials, our valves are built to withstand extreme pressures, temperatures, and working environments, ensuring long-lasting durability and performance. Simple Operation: With easy-to-understand controls, these valves can be manually or automatically operated, providing flexibility and ease of use in different applications. Leak-Proof Design: Sonu direction control valves feature advanced sealing technology to prevent leaks and ensure efficient, secure operation, minimizing fluid loss and enhancing system efficiency. Low Maintenance: Designed with longevity in mind, these valves require minimal maintenance and downtime, reducing overall operational costs and improving system reliability. Types of Direction Control Valves: 2-Way Direction Control Valves: Used for simple on/off applications, directing fluid to one of two possible paths. 3-Way Direction Control Valves: Offer one inlet and two outlets, directing fluid to one of the two available directions depending on the system's requirements. 4-Way Direction Control Valves: These valves direct fluid to one of four outlets, commonly used in applications like actuating double-acting cylinders, where fluid flow must alternate between two sides of the cylinder. Rotary Directional Valves: Operate by rotating a spool or disk to direct fluid flow, often used in applications that require more precise control and durability. Solenoid and Manual Operated Valves: Available in both solenoid-actuated and manual versions, Sonu's direction control valves can be operated via electrical signals or manually for optimal flexibility in various control systems. Applications: Hydraulic Systems: Direction control valves are essential in hydraulic systems that require fluid flow direction control for actuators, cylinders, and motors, ensuring smooth operation in machinery like excavators, cranes, and presses. Pneumatic Systems: Used in pneumatic systems for controlling the movement of actuators, valves, and other components, ensuring optimal flow direction in systems like robotics, packaging, and automation. Agricultural Equipment: Operate hydraulic systems in tractors, harvesters, and other agricultural machinery to control implements and attachments efficiently. Automotive and Transport: Direction control valves are critical in controlling hydraulic brake systems, steering systems, and suspension systems in vehicles and heavy equipment. Manufacturing and Industrial Automation: Enable precise fluid control in various industrial applications such as presses, assembly lines, and conveyors, enhancing production efficiency. Why Choose Sonu Hose Pipe Direction Control Valves? High Performance: Sonu’s direction control valves are engineered for optimal performance, delivering precise control of fluid flow to ensure smooth operation of your system. Durability and Longevity: Our valves are designed to handle the toughest conditions, built with durable materials that ensure reliability and a long service life. Customization: We offer a wide range of options in terms of pressure ratings, sizes, and configurations to meet the specific needs of your hydraulic or pneumatic system. Cost-Effective: Sonu direction control valves offer excellent value, balancing performance and affordability to help you optimize your system without compromising on quality. Expert Support: Our experienced technical team is always available to assist with selecting the right valve for your application, providing installation guidance, and offering ongoing support.

Monoblock Valve: A Comprehensive Overview A Monoblock valve is a type of hydraulic valve that is designed as a single, compact unit. It plays a crucial role in controlling the flow, Design and Structure of a Monoblock Valve The primary characteristic of a Monoblock valve is its monoblock construction, where multiple valve functions Monoblock valves typically Valve Body: The main housing that contains the valve’s internal components and channels. It is usually machined from a single piece of metal. Control Spools or Ball Mechanisms: These components control the flow direction and the opening Ports: The inlet and outlet ports that allow hydraulic fluid to enter and exit the valve. These ports are typically designed for high-pressure environments. Spring or Actuator Mechanism: Some block valves are spring-loaded, while others use solenoids or hydraulic actuators to control the valve’s movement and function. Seals and O-rings: These ensure that there are no leaks between the internal components, maintaining the integrity of the hydraulic fluid system. Working Principle of a Monoblock Valve Flow Control: The valve’s internal mechanism, such as a spool or ball, Pressure Relief: Many monoblock valves include integrated pressure relief features. Direction Control: Monoblock valves can also control the direction of fluid flow. For example, a directional control valve in a monoblock Types of Monoblock Valves Monoblock valves come in various types, each designed for specific tasks within a hydraulic system. The most common types include: Directional Control Valves: These valves control the direction of the hydraulic fluid. They are used to change the flow direction, Flow Control Valves: Flow control valves regulate the flow rate of the hydraulic fluid in a system. conditions. Pressure Relief Valves: These valves are designed to maintain a preset maximum pressure in the hydraulic system. When the system’s pressure exceeds the set limit, Check Valves: Check valves allow fluid to flow in one direction only, Combination Valves: Some monoblock valves combine multiple valve functions into a single unit, such as a directional control valve with built-in pressure relief and flow control. Advantages of Monoblock Valves Compact Design: One of the primary advantages of Monoblock valves is their compact design. Since all components are integrated into a single unit, Ease of Installation: The single-unit design of Monoblock valves simplifies installation. Cost-Effectiveness: Monoblock valves are generally more cost-effective than traditional valves that require multiple parts. Reduced Leak Points: With fewer parts and integrated construction, Improved Performance: The integration of multiple valve functions into a single unit reduces the number of components that could potentially fail, Applications of Monoblock Valves Monoblock valves are used in a wide range of applications across various industries, including: Construction Machinery: Monoblock valves are used in construction equipment like excavators, loaders, and backhoes to control the movement of hydraulic cylinders and motors. Agricultural Equipment: In agriculture, Monoblock valves control the operation of hydraulic systems in tractors, combine harvesters, and other farm machinery. Industrial Automation: These valves are widely used in industrial machines and production lines for controlling fluid flow to actuators, which is essential in automation processes. Mobile Equipment: Monoblock valves are commonly found in mobile machinery like cranes, forklifts, and material handling systems, where they manage the hydraulic flow for various operations. Automotive Systems: Monoblock valves are used in automotive applications, such as power steering systems and lifting mechanisms in heavy-duty vehicles. Conclusion Monoblock valves are essential components in hydraulic systems, offering a compact, cost-effective, and reliable solution for controlling fluid flow, pressure, and direction. Their integrated design minimizes installation time

Monoblock Valve: A Comprehensive Overview A Monoblock valve is a type of hydraulic valve that is designed as a single, compact unit. It plays a crucial role in controlling the flow, Design and Structure of a Monoblock Valve The primary characteristic of a Monoblock valve is its monoblock construction, where multiple valve functions Monoblock valves typically Valve Body: The main housing that contains the valve’s internal components and channels. It is usually machined from a single piece of metal. Control Spools or Ball Mechanisms: These components control the flow direction and the opening Ports: The inlet and outlet ports that allow hydraulic fluid to enter and exit the valve. These ports are typically designed for high-pressure environments. Spring or Actuator Mechanism: Some block valves are spring-loaded, while others use solenoids or hydraulic actuators to control the valve’s movement and function. Seals and O-rings: These ensure that there are no leaks between the internal components, maintaining the integrity of the hydraulic fluid system. Working Principle of a Monoblock Valve Flow Control: The valve’s internal mechanism, such as a spool or ball, Pressure Relief: Many monoblock valves include integrated pressure relief features. Direction Control: Monoblock valves can also control the direction of fluid flow. For example, a directional control valve in a monoblock Types of Monoblock Valves Monoblock valves come in various types, each designed for specific tasks within a hydraulic system. The most common types include: Directional Control Valves: These valves control the direction of the hydraulic fluid. They are used to change the flow direction, Flow Control Valves: Flow control valves regulate the flow rate of the hydraulic fluid in a system. conditions. Pressure Relief Valves: These valves are designed to maintain a preset maximum pressure in the hydraulic system. When the system’s pressure exceeds the set limit, Check Valves: Check valves allow fluid to flow in one direction only, Combination Valves: Some monoblock valves combine multiple valve functions into a single unit, such as a directional control valve with built-in pressure relief and flow control. Advantages of Monoblock Valves Compact Design: One of the primary advantages of Monoblock valves is their compact design. Since all components are integrated into a single unit, Ease of Installation: The single-unit design of Monoblock valves simplifies installation. Cost-Effectiveness: Monoblock valves are generally more cost-effective than traditional valves that require multiple parts. Reduced Leak Points: With fewer parts and integrated construction, Improved Performance: The integration of multiple valve functions into a single unit reduces the number of components that could potentially fail, Applications of Monoblock Valves Monoblock valves are used in a wide range of applications across various industries, including: Construction Machinery: Monoblock valves are used in construction equipment like excavators, loaders, and backhoes to control the movement of hydraulic cylinders and motors. Agricultural Equipment: In agriculture, Monoblock valves control the operation of hydraulic systems in tractors, combine harvesters, and other farm machinery. Industrial Automation: These valves are widely used in industrial machines and production lines for controlling fluid flow to actuators, which is essential in automation processes. Mobile Equipment: Monoblock valves are commonly found in mobile machinery like cranes, forklifts, and material handling systems, where they manage the hydraulic flow for various operations. Automotive Systems: Monoblock valves are used in automotive applications, such as power steering systems and lifting mechanisms in heavy-duty vehicles. Conclusion Monoblock valves are essential components in hydraulic systems, offering a compact, cost-effective, and reliable solution for controlling fluid flow, pressure, and direction. Their integrated design minimizes installation time

HDD Control Valves Control valves** in HDD rigs manage the direction, flow rate, and pressure of hydraulic fluids powering various components, such as: Thrust/pullback systems Drill rotation motors Clamp/vise actuators Pipe loader arms Mud pump drive systems They can be manual, pilot-operated, or electro-hydraulic depending on system complexity. �� 2. Types of Valves Used in HDD Systems Valve Type Function Common Placement Directional Control Valve (DCV) Directs flow to actuators (e.g. extend/retract cylinders) Main hydraulic circuits Flow Control Valve Regulates speed of actuators by limiting flow Rotation/thrust speed adjustment Pressure Relief Valve Protects system from overpressure Inline with all major circuits Pilot-Operated Check Valve Locks actuators in place under load Clamp and rotation holding systems Solenoid Valve Electrically controlled valve for automated function Remote or onboard controls Load-Sensing Valve Adjusts flow based on demand, improving efficiency Advanced HDD rigs ⚙️ 3. Features: High pressure handling (up to 5000 psi / 350 bar) Compact modular manifolds for integrated control Stackable for space-efficient designs Available in cartridge or monoblock forms Options for manual levers, electric joystick, or remote radio control �� 4. Specifications (Typical): Spec Value Flow Rate 20–150 L/min Pressure 210–420 bar (3000–6000 psi) Ports BSP, NPT, or SAE Control Manual, electric, or hydraulic pilot Material Steel or cast iron (plated for corrosion resistance) �� 5. Brands Used in HDD Machines: Rexroth (Bosch) Parker Hannifin Hydac Sun Hydraulics Danfoss / Eaton Walvoil, Yuken, and Atos �� 6. Applications in HDD Rigs: System Valve Role Thrust/Pullback Directional & flow control for hydraulic cylinders Rotation Drive Speed & torque control via flow/pressure regulation Clamp/Vise Check valves to hold position under load Rod Loader Directional valves for actuator motion Drill Head Steering Fine pressure and flow adjustments for steering nozzles �� 7. Maintenance & Troubleshooting: Regularly inspect for leakage, spool stickiness, or overheating Ensure filters are clean to avoid contamination wear Check for correct voltage on solenoid coils Use diagnostic tools to monitor pilot pressure and feedback

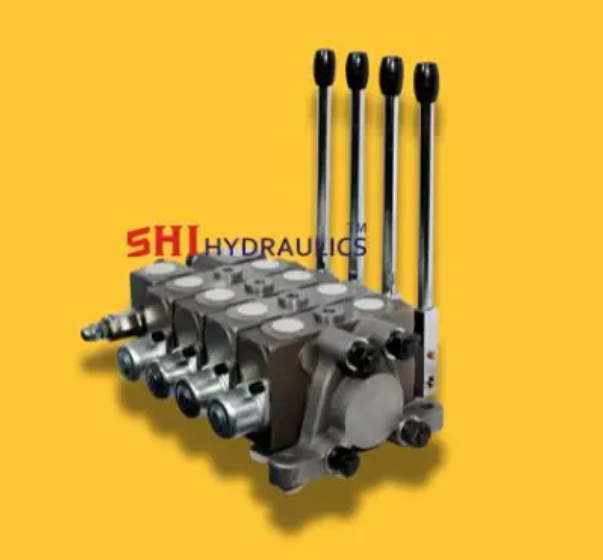

Hydraulic Control Valve hydraulic control valve is a critical component used in hydraulic systems to control the direction, pressure, and flow rate of hydraulic fluid. The specific valve shown is a multi-spool directional control valve, typically used in mobile and industrial hydraulic equipment. Key Features: Multi-Spool Design: Allows independent control of multiple hydraulic functions (e.g., cylinders, motors). Cast Iron Construction: Ensures durability, high pressure resistance, and a long service life. Manual/Lever Operation: Operated via levers, which direct hydraulic fluid through different channels based on the spool position. Pressure Relief Valves: Built-in safety features to protect the system from overpressure. Multiple Ports: Clearly marked inlet (P), outlet (T), and work ports (A/B) for easy installation and maintenance. Compact Form Factor: Space-saving design, ideal for mounting in confined areas. Application: Widely used in agricultural machinery, construction equipment, loaders, cranes, and other mobile hydraulic applications. Functionality: Each spool within the valve corresponds to a hydraulic actuator. When a spool is moved, it opens specific internal channels, allowing hydraulic fluid to flow from the pump to a particular actuator, while returning fluid from other actuators back to the tank.

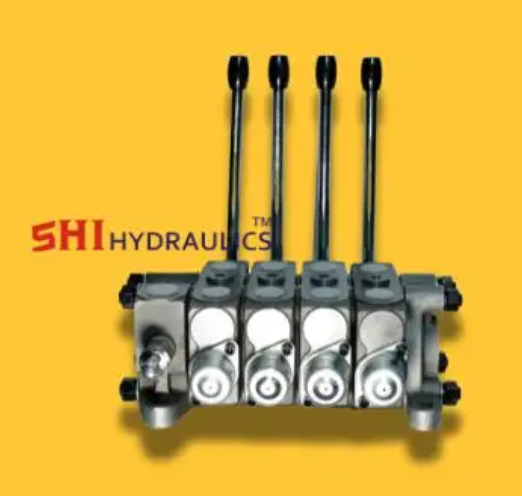

A sectional valve is a type of hydraulic control valve composed of multiple modular sections, allowing for independent control of multiple hydraulic functions within a system. It is widely used in mobile and industrial hydraulic applications, such as construction machinery, agricultural equipment, and material handling systems. Key Components of a Sectional Valve Main Valve Sections – Modular sections, each controlling a different hydraulic function. Inlet Section – Directs hydraulic fluid into the valve assembly from the pump. Spools – Move within the sections to regulate fluid flow and direction. Outlet Section – Returns excess hydraulic fluid to the reservoir. Pressure Relief Valve – Protects the system by preventing overpressure. Actuators (Manual, Electric, or Hydraulic) – Operate the spools to control fluid movement. Features of a Sectional Valve Modular Design – Can be expanded by adding or removing sections based on system needs. Independent Function Control – Each section operates a separate hydraulic circuit. Durable Construction – Made from high-strength materials for long-lasting performance. Customizable Flow and Pressure Settings – Adjustable to meet specific hydraulic requirements. Compact and Space-Saving – Ideal for systems with multiple hydraulic operations. Common Applications Construction Machinery – Used in excavators, loaders, and cranes for controlling multiple hydraulic movements. Agricultural Equipment – Powers hydraulic functions in tractors, harvesters, and sprayers. Material Handling – Operates hydraulic lifts, forklifts, and conveyor systems. Municipal Vehicles – Controls hydraulic functions in garbage trucks, fire trucks, and snow plows.

DC Power Pack is a compact, self-contained unit that supplies direct current (DC) power to hydraulic or electrical systems. It is commonly used in mobile and industrial applications where a reliable DC power source is required for actuating hydraulic cylinders, motors, and other equipment. Key Components of a DC Power Pack DC Electric Motor – Converts electrical energy into mechanical power to drive the hydraulic pump. Hydraulic Pump – Generates hydraulic pressure to power actuators and other hydraulic components. Reservoir/Tank – Stores hydraulic fluid for circulation within the system. Control Valves – Regulate the flow and direction of hydraulic fluid. Filters – Remove contaminants from the hydraulic fluid to maintain system efficiency. Battery or External Power Source – Provides DC electrical energy to operate the motor. Manifold Block – Houses various hydraulic control elements like relief valves and check valves. Features of a DC Power Pack Compact & Lightweight – Designed for easy installation in confined spaces. Efficient Power Output – Provides high torque with low energy consumption. Versatile Voltage Options – Available in 12V, 24V, 48V, and other DC voltage ratings. Remote Operation – Can be controlled via wired or wireless remote systems. Low Maintenance – Requires minimal upkeep compared to larger hydraulic systems. Common Applications Material Handling Equipment – Used in forklifts, scissor lifts, and hydraulic lifts. Automotive & Truck Applications – Powers hydraulic tailgates, dump trucks, and trailers. Industrial Automation – Supports presses, clamps, and compact hydraulic machinery. Agricultural Equipment – Operates hydraulic functions in tractors and sprayers. Marine & Off-Road Vehicles – Provides hydraulic power for winches, ramps, and steering systems.

Putzmeister Agitator Hydraulic Motor – OMH-500 Model No: OMH-500 Application: Concrete Pump Agitator Drive OEM Part No: 238130001 (commonly associated) Overview: The OMH-500 hydraulic motor is a robust and high-torque motor engineered for use in Putzmeister concrete pumps, specifically as the agitator motor responsible for driving the mixing paddle within the hopper. Its primary function is to keep the concrete in constant motion, preventing segregation and ensuring a consistent, pumpable mixture. Key Features: �� High-Torque Performance: Designed with a displacement of approximately 500 cc/rev, the OMH-500 delivers high torque at low speeds—ideal for heavy-duty mixing tasks within the concrete hopper. �� Smooth Agitation Control: Supports smooth and continuous rotation of the agitator paddles to maintain a homogenous concrete mix, even with coarse aggregates or varying slump levels. ��️ Heavy-Duty Construction: Built with reinforced cast iron housing and precision-machined internal components for maximum durability under rugged construction site conditions. �� Mounting & Fitment: Standard 4-bolt SAE mounting flange and 35mm splined shaft, ensuring a direct replacement fit for OEM Putzmeister setups. �� Hydraulic Efficiency: Designed for low leakage and high volumetric efficiency, contributing to better fuel economy and longer hydraulic component life. Technical Specifications (Typical): Parameter Specification Displacement ~500 cc/rev Max Continuous Speed 155 RPM Max Intermittent Speed 200 RPM Max Torque Output Up to 1,200 Nm Shaft Type Splined (35mm standard) Mounting Flange 4-bolt SAE Port Size G1/2' (BSP or SAE, varies) Operating Pressure Up to 210–250 bar (approx.) Fluid Type Hydraulic oil (ISO VG 46/68) Weight Approx. 20–25 kg Applications: ✅ Putzmeister Concrete Pumps – Agitator Motor (e.g., BSF, TK, P 718 models) ✅ Suitable for retrofitting or replacing damaged motors in hopper mixer drives ✅ Used in OEM and aftermarket repair of ready-mix and shotcrete pump systems Benefits: Prevents Concrete Hardening in Hopper Continuous mixing action prevents concrete from settling or solidifying during pauses in pumping. Reduces Maintenance Downtime Durable design reduces the need for frequent servicing or premature replacement. Improves Pump Efficiency Ensures consistent flow of well-mixed concrete, protecting the main pumping cylinders.
