Interlock Flexible Hose Pipe at Sonu Hose Pipe Overview: Sonu Hose Pipe offers a high-quality range of Interlock Flexible Hose Pipes, designed to provide exceptional flexibility, strength, and durability in a variety of fluid transfer applications. These hoses are constructed using advanced materials and technology to meet the demands of industries that require flexible, high-performance hoses for handling various types of liquids, gases, and powders. Known for their interlocking metal construction, Sonu’s interlock flexible hose pipes offer superior flexibility and resistance to external pressures, making them the perfect solution for complex and space-restricted applications. Size/Diameter 3/4 inch Material UPVC Type Spray Hose Pipe Length 10 m Usage/Application Water Is It Flexible Yes Colour Silver The Interlock Hoses are the helically coiled high quality metallic strip with interlock construction. These hoses are made using copper coated steel, aluminum and stainless steel in different sizes and specifications. The hoses are sturdy in construction and can bear temperature Key Features: Superior Flexibility: The interlocking design allows for enhanced flexibility, enabling the hose to bend and move easily, making it ideal for applications where flexibility and space-saving are crucial. Durable Construction: Made from high-quality stainless steel, galvanized steel, or other robust materials, Sonu interlock flexible hoses are designed to withstand wear, abrasion, and harsh environmental conditions. Corrosion and Abrasion Resistance: The materials used in the construction of these hoses are resistant to corrosion, abrasion, and weathering, ensuring long-lasting performance even in harsh conditions and challenging environments. Compact and Lightweight: Despite their heavy-duty construction, interlock flexible hose pipes are lightweight and space-efficient, making them perfect for compact installations or areas with limited space. Leak-Proof and Secure Connections: The interlocking design ensures that the hose remains securely connected, preventing leaks and ensuring smooth fluid transfer. Wide Temperature Range: These hoses are designed to handle a broad range of temperatures, from extremely low to high temperatures, making them versatile for various industrial environments. Types of Interlock Flexible Hose Pipes: Standard Interlock Flexible Hoses: These hoses provide flexible solutions for a wide range of fluid transfer applications, offering excellent resistance to pressure and abrasion. High-Pressure Interlock Hoses: Engineered to handle high-pressure conditions, these hoses are perfect for applications where fluids or gases need to be transferred at elevated pressures. Heavy-Duty Interlock Hoses: Designed for tough industrial environments, these hoses are made with additional reinforcement to ensure maximum durability and performance in heavy-duty applications. Chemical-Resistant Interlock Hoses: Specifically designed to transport aggressive chemicals, these hoses are resistant to corrosion from acids, alkalis, and other harsh chemicals, making them suitable for a variety of industrial processes. Food-Grade Interlock Hoses: Constructed with materials that meet safety standards for the food and beverage industry, these hoses are ideal for transferring liquids in food processing plants, breweries, and dairies. Customizable Interlock Hoses: Depending on your specific requirements, Sonu Hose Pipe offers custom options for diameter, length, and fittings to suit your unique application needs. Applications: Industrial Fluid Transfer: Interlock flexible hoses are commonly used in industrial applications for the transfer of various fluids, including water, chemicals, oils, and gases, ensuring safe and efficient movement through piping systems. Automotive and Transport Systems: These hoses are used in automotive applications for transferring oil, coolant, and other fluids in engines, radiators, and other mechanical systems. Food and Beverage Industry: Sonu interlock flexible hoses are widely used in the food and beverage sector for the transfer of liquids like milk, juice, beer, and other products, meeting strict hygiene and safety standards. Pharmaceutical and Chemical Processing: These hoses are used in pharmaceutical and chemical industries for safely transporting chemicals, gases, and other hazardous substances, ensuring leak-proof operation and preventing contamination. HVAC Systems: Interlock flexible hoses are used in HVAC (Heating, Ventilation, and Air Conditioning) systems for duct connections and fluid transfer between units, thanks to their flexibility and resistance to temperature fluctuations. Oil and Gas Industry: In the oil and gas industry, these hoses are used for fluid transport in drilling operations, offshore platforms, and refineries, where pressure, durability, and flexibility are critical.

High-Pressure Hydraulic Hoses at Sonu Hose Pipe Sonu Hose Pipe offers a comprehensive range of High-Pressure Hydraulic Hoses, specifically engineered to meet the demands of high-pressure fluid transfer applications in various industries. These hoses are built to withstand extreme pressures and ensure the safe and efficient transport of hydraulic fluids in heavy-duty machinery and systems. Crafted with advanced materials and reinforced with durable layers, Sonu’s high-pressure hydraulic hoses offer unmatched reliability, performance, and safety. Size/Diameter 2 inch Pressure 30 Bar Type Hydraulic Hoses Usage/Application Industrial Color Black Material Rubber High-pressure hydraulic hoses are designed to withstand significant pressure and transmit hydraulic fluid effectively in demanding environments. They are crucial components in hydraulic systems used in industries like construction, manufacturing, and automotive. Key Features: High-Pressure Performance: Sonu high-pressure hydraulic hoses are designed to handle high-pressure environments, providing reliable and safe fluid transfer in hydraulic systems operating under extreme pressure conditions. Durable Construction: Made from high-quality materials such as synthetic rubber, steel wire, and braided steel, these hoses are built to resist wear, abrasion, and pressure, ensuring long-term reliability and performance in demanding environments. Superior Burst Resistance: With reinforced layers, our hoses offer excellent burst resistance, making them suitable for applications that require maximum safety and stability under high-pressure conditions. Abrasion and Weather Resistance: The hoses are resistant to external wear, UV rays, and weathering, ensuring they perform optimally even in harsh outdoor environments or under constant friction and movement. Leak-Free and Secure: Designed with high-quality fittings and couplings, Sonu high-pressure hydraulic hoses offer a secure, leak-free connection that prevents fluid loss, ensuring smooth and safe operation. Wide Temperature Range: These hoses are designed to operate effectively in both high and low temperatures, providing flexibility in various applications where temperature fluctuations are common. Compatibility with Multiple Fluids: Sonu’s hydraulic hoses are compatible with a wide range of hydraulic fluids, including oil, water, and other chemicals, providing versatility across various industries. Types of High-Pressure Hydraulic Hoses: Spiral Hydraulic Hoses: Designed for ultra-high-pressure systems, these hoses are reinforced with spiral layers of steel wire, offering exceptional burst strength and durability for extreme conditions. Wire-Reinforced Hydraulic Hoses: These hoses are designed for heavy-duty applications and are reinforced with a steel wire to handle high-pressure and high-flow hydraulic systems, offering excellent resistance to abrasion and pressure. Thermoplastic Hydraulic Hoses: Made from thermoplastic materials, these hoses offer enhanced flexibility and are resistant to heat, making them suitable for applications that involve high temperatures and pressure. Heat-Resistant Hydraulic Hoses: Designed to withstand higher temperatures, these hoses are ideal for environments where extreme heat is present, such as in heavy machinery, industrial plants, or automotive systems. Chemical-Resistant Hydraulic Hoses: These hoses are designed to handle hydraulic fluids and chemicals, offering resistance to corrosion, making them ideal for use in the chemical, pharmaceutical, and food processing industries. Applications: Construction Equipment: High-pressure hydraulic hoses are essential in construction machinery such as excavators, bulldozers, and cranes, where they manage the hydraulic fluid that powers the equipment’s operations. Industrial Machinery: These hoses are used in industrial machinery, including presses, lifts, and molding machines, to facilitate the transfer of hydraulic fluid, enabling smooth and efficient operation. Agricultural Machinery: In farming equipment like tractors, harvesters, and irrigation systems, high-pressure hydraulic hoses ensure that hydraulic systems function efficiently, enhancing the machinery’s performance. Automotive and Transport: Used in various automotive systems such as power steering, braking, and suspension systems, these hoses ensure reliable fluid flow for optimal vehicle performance and safety. Oil and Gas Industry: High-pressure hydraulic hoses are crucial in drilling operations, offshore platforms, and oil refineries, where they transfer fluids under high pressure in critical applications. Aerospace and Aviation: These hoses are used in aircraft hydraulic systems, ensuring reliable performance in controlling flight surfaces, landing gear, and other critical components under high-pressure conditions.

Hose Pipe at Sonu Hose Pipe Overview: Sonu Hose Pipe offers an extensive range of high-quality Hose Pipes designed to meet the diverse needs of industries that require fluid transfer solutions. From agricultural and industrial applications to domestic use, Sonu Hose Pipes are built for flexibility, durability, and performance. Our hoses are engineered to handle various fluids, including water, chemicals, oils, gases, and more, providing reliable service under demanding conditions. Size/Diameter 3 inch Type Rubber Hose Pipe Color Black Usage/Application Industrial Length 8 m Max Burst Pressure 75 kg/cm2 These hoses are used for special purposes like Sand blasting, Shotcreting, Concrete pumping and delivery, Oil discharge and decanting, Cement grouting etc. Key Features: Durable Construction: Sonu Hose Pipes are made from premium-grade materials such as rubber, PVC, thermoplastic, and metal alloys, ensuring superior durability and long service life. Flexibility and Versatility: Our hoses are engineered to offer excellent flexibility, making them easy to install and maneuver in tight spaces, while also handling high-pressure environments with ease. Abrasion and Weather Resistance: Built to withstand harsh outdoor conditions, our hoses are resistant to abrasion, UV rays, and extreme temperatures, ensuring consistent performance in both indoor and outdoor applications. Chemical and Corrosion Resistance: Designed to handle various chemicals and corrosive materials, these hoses are perfect for industries such as agriculture, manufacturing, automotive, and more. High and Low-Temperature Resistance: Whether you need hoses for high-temperature steam applications or cold environments, Sonu Hose Pipes can withstand a wide range of temperatures, providing versatility in demanding systems. Types of Hose Pipes: Rubber Hose Pipes: Flexible and durable, rubber hose pipes are ideal for a variety of fluid transfer applications, including water, oil, air, and gas. These hoses provide excellent resistance to heat, ozone, and chemicals. PVC Hose Pipes: Lightweight and cost-effective, PVC hoses are used for a wide range of industrial and domestic applications. These hoses are highly resistant to abrasion, making them ideal for general fluid transfer. Metal Hose Pipes: Made with stainless steel or other metal alloys, these hoses are designed for heavy-duty applications, providing resistance to high temperatures, pressure, and chemical corrosion. High-Pressure Hose Pipes: Specifically designed to withstand high-pressure environments, these hoses are perfect for use in hydraulic systems, pressure washers, and other high-demand industrial applications. Food-Grade Hose Pipes: These hoses are constructed with FDA-approved materials, making them suitable for food and beverage applications, ensuring safe and hygienic transfer of liquids such as water, juice, and dairy products. Garden Hose Pipes: Designed for residential and commercial gardening, our garden hoses are perfect for watering plants, cleaning, and general outdoor use. They are lightweight, flexible, and easy to handle. Air Hose Pipes: Ideal for pneumatic tools, air compressors, and other air-driven equipment, these hoses are constructed to handle compressed air with high durability and flexibility. Chemical Hose Pipes: Designed for the safe transfer of chemicals and corrosive substances, these hoses are made from materials that offer superior resistance to a wide range of chemicals, acids, and alkalis. Steam Hose Pipes: Constructed to handle high-temperature steam applications, these hoses are used in power plants, industrial facilities, and other sectors where steam transfer is required. Applications: Industrial Applications: Sonu Hose Pipes are essential for fluid transfer in various industrial applications such as construction, manufacturing, and mining, where high-performance hoses are required for both low and high-pressure systems. Agriculture: Our hoses are widely used in irrigation systems, chemical spraying, and watering systems to support agricultural activities, ensuring smooth and efficient operations in farms and gardens. Automotive and Transport: Sonu Hose Pipes are used in automotive systems for fluid transfer, including coolant systems, fuel lines, and air conditioning units, providing durability and safety under high pressure. Oil & Gas Industry: These hoses are employed in oil refineries, offshore platforms, and pipeline systems for the safe transport of oil, gas, and other fluids, ensuring leak-proof and efficient operations. Food & Beverage: In food processing, beverage production, and dairy facilities, Sonu’s food-grade hoses provide safe and hygienic fluid transfer, meeting industry standards for safety and quality.

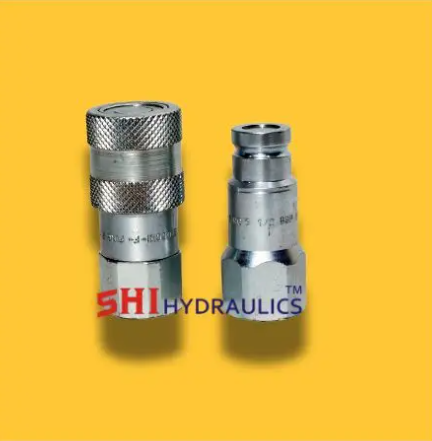

A quick release coupling is a versatile connector designed to be quickly and easily disassembled and reassembled in hose, pipe, tubing or in water transfer applications These couplings are commonly used in a variety of industries, including automotive , including construction and agriculture, where water management is important ### Special Features: 1. **FAST OPERATION**: Quick release couplings provide fast connection and disconnection, resulting in less downtime when servicing or replacing equipment. 2. **User-friendly design**: Typically featuring a simple push-pull or latch mechanism, these couplings can be operated with one hand, making them simple and efficient. 3. **Versatility**: Available in a variety of sizes and materials, quick release couplings can handle a variety of fluids including water, oil and air, making them suitable for a wide range of applications. 4. **Leak-Proof Seal**: Many early release couplings use O-rings or sealing devices that ensure a safe, leak-proof connection, maintaining system integrity during operation among. 5. **Durability**: Made of durable materials such as copper, stainless steel, or polymers, these couplings are designed to withstand high stresses and harsh environmental conditions , has ensured its long-term effectiveness. Overall, quick-release couplings provide an efficient solution for fluid handling, facilitating easy operation and easy maintenance in industrial and commercial environments

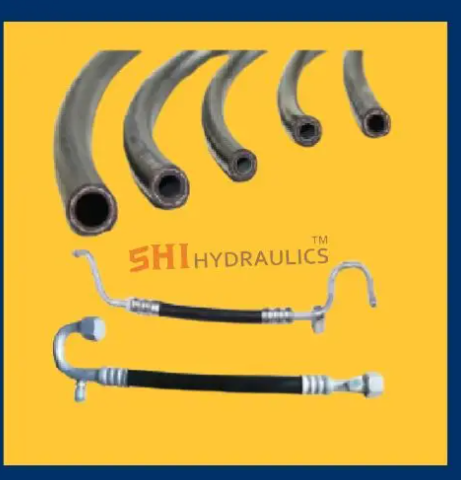

Air Conditioning Hose An air conditioning (AC) hose is an integral part of any vehicle or building’s air conditioning system, responsible for transporting refrigerant and ensuring the system operates effectively. Designed to handle high-pressure and high-temperature conditions, these hoses ensure the seamless circulation of refrigerant between the compressor, condenser, evaporator, and expansion valve. This description delves into the features, types, materials, benefits, applications, and maintenance of air conditioning hoses, highlighting their importance in modern climate control systems. Key Features of Air Conditioning Hoses Durability Constructed to withstand extreme pressures and temperatures, AC hoses are robust and reliable. Flexibility Flexible construction allows these hoses to be routed through tight and complex spaces without compromising performance. Pressure Resistance Designed to handle high refrigerant pressures, ensuring safe and efficient operation. Chemical Compatibility Resistant to refrigerants, oils, and other chemicals commonly used in AC systems. Temperature Resistance Capable of enduring both high and low temperatures, ensuring functionality in diverse climates. Types of Air Conditioning Hoses Barrier Hoses Equipped with an inner layer that prevents refrigerant permeation, ensuring system efficiency and environmental compliance. Non-Barrier Hoses Older hose types without a permeation barrier, now less common due to stricter environmental regulations. Reduced Barrier Hoses Compact and lightweight, these hoses offer the same performance as barrier hoses while saving space and weight. Rubber Hoses Made from durable rubber compounds, often reinforced with braided fibers or steel for added strength. Thermoplastic Hoses Constructed from advanced polymers, providing excellent flexibility and resistance to refrigerants and heat. Metal Braided Hoses Feature a metal braid for enhanced durability in high-pressure applications. Materials Used in Air Conditioning Hoses Synthetic Rubber Provides flexibility, durability, and resistance to refrigerants and oils. Nylon or Polyester Barrier Layers Prevent refrigerant leakage and improve system efficiency. Reinforcement Layers Braided fibers or steel reinforcement enhance strength and pressure resistance. Outer Coverings Protective layers shield the hose from abrasion, UV rays, and environmental wear. Benefits of Air Conditioning Hoses Efficient Refrigerant Flow Ensures the proper circulation of refrigerant for optimal cooling performance. System Longevity Durable construction reduces wear and tear, extending the lifespan of the AC system. Environmentally Friendly Modern hoses minimize refrigerant leakage, reducing environmental impact. Versatility Compatible with a variety of refrigerants, including R-134a and newer eco-friendly options like R-1234yf. Safety Designed to handle high pressures, preventing system failures and ensuring safe operation.

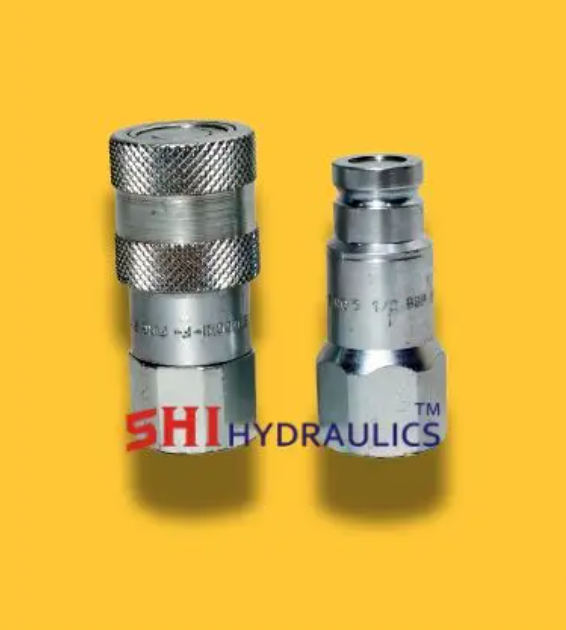

Quick release coupling Quick release coupling A quick release coupling is a versatile connector designed to be quickly and easily disassembled and reassembled in hose, pipe, tubing or in water transfer applications These couplings are commonly used in a variety of industries, including automotive , including construction and agriculture, where water management is important ### Special Features: 1. **FAST OPERATION**: Quick release couplings provide fast connection and disconnection, resulting in less downtime when servicing or replacing equipment. 2. **User-friendly design**: Typically featuring a simple push-pull or latch mechanism, these couplings can be operated with one hand, making them simple and efficient. 3. **Versatility**: Available in a variety of sizes and materials, quick release couplings can handle a variety of fluids including water, oil and air, making them suitable for a wide range of applications. 4. **Leak-Proof Seal**: Many early release couplings use O-rings or sealing devices that ensure a safe, leak-proof connection, maintaining system integrity during operation among. 5. **Durability**: Made of durable materials such as copper, stainless steel, or polymers, these couplings are designed to withstand high stresses and harsh environmental conditions , has ensured its long-term effectiveness. Overall, quick-release couplings provide an efficient solution for fluid handling, facilitating easy operation and easy maintenance in industrial and commercial environments 🔍 Quick Release CouplingQuick Release CouplingQuick release coupling - Image 3Quick Release CouplingQuick release coupling - Image 5Quick release coupling - Image 6Quick release coupling - Image 7 Quick Release CouplingQuick Release CouplingQuick release coupling - Image 3Quick Release CouplingQuick release coupling - Image 5Quick release coupling - Image 6Quick release coupling - Image 7

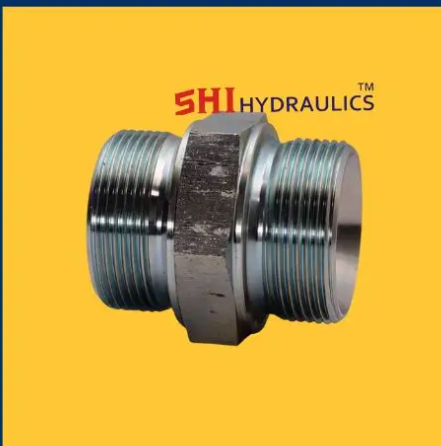

Adaptors Hose Adaptors Design and Construction of Adaptors Hose adaptors are engineered with precision to meet the demands of various systems. Their construction Materials: Steel: Ideal for high-pressure and high-strength applications, commonly used in hydraulic systems. Stainless Steel: Provides excellent resistance to corrosion and is suitable for harsh environments or chemical exposure. Brass: Known for its corrosion resistance and ease of machining, suitable for medium-pressure systems. Aluminum: Lightweight and corrosion-resistant, preferred for applications where weight reduction is crucial. Plastic or Composite: Cost-effective and lightweight, used for low-pressure or non-corrosive environments. Design Features: Threaded Ends: Barbed Connectors: Quick-Connect Mechanisms: Swivel Joints: Prevent kinking and reduce stress on hoses by allowing rotational movement. Sealing Mechanisms: Types of Hose Adaptors Hose adaptors are available in various types, each designed for specific purposes. Common types include: Straight : Connect hoses or fittings in a straight alignment, maintaining consistent fluid flow. Elbows: Feature angled connections, such as 45° or 90°, to accommodate directional changes in fluid routing. T-: Allow fluid to split or merge in systems with multiple flow paths, providing flexibility in design. Reducing : Enable connections between hoses or fittings of different diameters, accommodating changes in system size. Swivel : Allow rotational movement between components to prevent twisting and reduce wear. Quick-Disconnect : Facilitate rapid connections and disconnections, commonly used in systems with frequent maintenance or equipment changes. Specialized : Designed for unique applications, such as chemical resistance, high-temperature tolerance, or specific thread patterns. Applications Hose adaptors are integral to a broad spectrum of industries and applications: Hydraulics: Used in construction machinery, agricultural equipment, and industrial systems to connect hydraulic hoses and components securely. Pneumatics: Facilitate air flow in systems such as air compressors, pneumatic tools, and automated machinery. Automotive: Commonly used in fuel lines, braking systems, and cooling systems for efficient fluid transfer. Oil and Gas: Critical in connecting high-pressure pipelines and hoses in drilling rigs, refineries, and petrochemical plants. Water Systems: Employed in irrigation, plumbing, and municipal Manufacturing: Used in machinery and equipment to connect hoses for lubrication, cooling, or fluid delivery systems. Advantages Hose adaptors offer numerous benefits that enhance the efficiency and functionality of fluid transfer systems: Versatility: Available in a wide range of sizes, materials, and configurations to suit diverse applications. Ease of Installation: Designed for straightforward installation, often requiring minimal tools or expertise. Durability: Engineered to withstand high pressures, extreme temperatures, and harsh environmental conditions. Leak Prevention: Precision design and effective sealing mechanisms ensure a secure and leak-free connection. Customization: Adaptors can be tailored to meet specific requirements, such as unique thread types or material in compatibility. Cost-Effectiveness: Allow the integration of different components without the need for costly system modifications. Maintenance and Best Practices To ensure the reliability and longevity of hose adaptors, proper maintenance and handling are crucial: Regular Inspection: Check adaptors for signs of wear, corrosion, or leaks. Replace damaged components promptly. Use Compatible Materials: Select adaptors made from materials that match the fluid type and environmental conditions. Avoid Over-Tightening: Excessive tightening can damage threads or compromise the seal. Protect from Damage: Shield adaptors from physical impacts, abrasion, and exposure to corrosive chemicals. Follow Manufacturer Guidelines: Adhere to installation and maintenance recommendations for optimal performance. Conclusion Hose adaptors are indispensable components in.Their diverse range of designs and materials makes them suitable for various industries, from hydraulic systems to automotive and manufacturing applications. By selecting the appropriate adaptor and maintaining it properly, operators can ensure efficient, safe, and reliable operation of

xhaust Bellows at Sonu Hose Pipe – Flexible Solutions for High-Temperature Exhaust Systems At Sonu Hose Pipe, we specialize in supplying high-quality Exhaust Bellows engineered to absorb thermal expansion, vibration, and misalignment in exhaust and ducting systems. Designed for demanding industrial and automotive environments, our exhaust bellows ensure reliable performance, extended system life, and enhanced safety under extreme operating conditions. With a strong commitment to quality, precision manufacturing, and customer satisfaction, Sonu Hose Pipe provides exhaust bellows that meet the requirements of modern engines, power plants, generators, and industrial exhaust applications. What Are Exhaust Bellows? Exhaust bellows are flexible expansion joints installed in exhaust systems to compensate for movement caused by heat expansion, vibration, and mechanical stress. As exhaust gases flow at high temperatures, system components expand and contract. Exhaust bellows protect rigid pipes and connected equipment by absorbing this movement, preventing cracks, leaks, and premature failure. They play a vital role in maintaining exhaust system integrity and reducing noise and vibration. Types of Exhaust Bellows Available at Sonu Hose Pipe We offer a wide range of exhaust bellows to suit various industrial and commercial applications: Metallic Exhaust Bellows Made from high-grade stainless steel Resistant to extreme temperatures and corrosion Ideal for heavy-duty and high-pressure applications Non-Metallic Exhaust Bellows Constructed using reinforced fabric or composite materials Suitable for lower pressure and temperature ranges Excellent vibration and noise absorption Single & Multi-Ply Bellows Single-ply for standard applications Multi-ply for enhanced strength and fatigue resistance Customized Exhaust Bellows Tailor-made designs based on size, temperature, and pressure requirements Flanged or welded end connections available Key Features of Exhaust Bellows from Sonu Hose Pipe High Temperature Resistance – Designed to withstand extreme exhaust heat Vibration Absorption – Protects engines and pipelines from mechanical stress Thermal Expansion Compensation – Prevents damage due to temperature variations Leak-Proof Construction – Ensures safe exhaust gas flow Corrosion Resistance – Suitable for harsh operating environments Long Service Life – Built for durability and consistent performance Applications of Exhaust Bellows Exhaust bellows supplied by Sonu Hose Pipe are widely used in: Diesel generator exhaust systems Automotive and commercial vehicle exhausts Power plants and turbines Marine engines Industrial boilers and furnaces Compressors and blowers HVAC and ducting systems Their flexibility and strength make them essential components in systems exposed to continuous thermal cycling. Quality Assurance at Sonu Hose Pipe Quality is at the core of everything we do at Sonu Hose Pipe. Our exhaust bellows undergo rigorous inspection and testing to ensure: Dimensional accuracy Temperature and pressure endurance Proper flexibility and movement absorption Secure welding and joint integrity Compliance with industry standards This ensures our customers receive products that perform reliably even under severe operating conditions. Advantages of Choosing Sonu Hose Pipe Wide Range of Exhaust Bellows – Standard and customized solutions Technical Support – Expert guidance for proper selection and installation Consistent Quality – Trusted performance across applications Competitive Pricing – High value with cost-effective solutions Customer-Focused Service – Long-term support and reliability Installation & Maintenance Benefits Exhaust bellows from Sonu Hose Pipe are designed for easy installation and minimal maintenance. When installed correctly, they: Reduce stress on exhaust pipelines Minimize noise and vibration Prevent system damage Improve overall efficiency Routine inspections help ensure optimal performance and extended service life. Why Exhaust Bellows Are Essential in Exhaust Systems Without proper expansion joints, exhaust systems are prone to cracking, leakage, and costly repairs. Exhaust bellows play a crucial role by: Protecting connected equipment Enhancing system reliability Improving safety and operational stability Sonu Hose Pipe ensures these benefits through robust design and dependable materials. Contact Sonu Hose Pipe for Exhaust Bellows Solutions If you are looking for durable, high-performance Exhaust Bellows, Sonu Hose Pipe is your trusted source. Our team is ready to provide reliable products and expert support tailored to your specific exhaust system requirements. Sonu Hose Pipe – Delivering Flexible, Heat-Resistant Solutions for Modern Exhaust Systems.

Putzmeister Agitator Hydraulic Motor – OMH-500 Model No: OMH-500 Application: Concrete Pump Agitator Drive OEM Part No: 238130001 (commonly associated) Overview: The OMH-500 hydraulic motor is a robust and high-torque motor engineered for use in Putzmeister concrete pumps, specifically as the agitator motor responsible for driving the mixing paddle within the hopper. Its primary function is to keep the concrete in constant motion, preventing segregation and ensuring a consistent, pumpable mixture. Key Features: �� High-Torque Performance: Designed with a displacement of approximately 500 cc/rev, the OMH-500 delivers high torque at low speeds—ideal for heavy-duty mixing tasks within the concrete hopper. �� Smooth Agitation Control: Supports smooth and continuous rotation of the agitator paddles to maintain a homogenous concrete mix, even with coarse aggregates or varying slump levels. ��️ Heavy-Duty Construction: Built with reinforced cast iron housing and precision-machined internal components for maximum durability under rugged construction site conditions. �� Mounting & Fitment: Standard 4-bolt SAE mounting flange and 35mm splined shaft, ensuring a direct replacement fit for OEM Putzmeister setups. �� Hydraulic Efficiency: Designed for low leakage and high volumetric efficiency, contributing to better fuel economy and longer hydraulic component life. Technical Specifications (Typical): Parameter Specification Displacement ~500 cc/rev Max Continuous Speed 155 RPM Max Intermittent Speed 200 RPM Max Torque Output Up to 1,200 Nm Shaft Type Splined (35mm standard) Mounting Flange 4-bolt SAE Port Size G1/2' (BSP or SAE, varies) Operating Pressure Up to 210–250 bar (approx.) Fluid Type Hydraulic oil (ISO VG 46/68) Weight Approx. 20–25 kg Applications: ✅ Putzmeister Concrete Pumps – Agitator Motor (e.g., BSF, TK, P 718 models) ✅ Suitable for retrofitting or replacing damaged motors in hopper mixer drives ✅ Used in OEM and aftermarket repair of ready-mix and shotcrete pump systems Benefits: Prevents Concrete Hardening in Hopper Continuous mixing action prevents concrete from settling or solidifying during pauses in pumping. Reduces Maintenance Downtime Durable design reduces the need for frequent servicing or premature replacement. Improves Pump Efficiency Ensures consistent flow of well-mixed concrete, protecting the main pumping cylinders.
